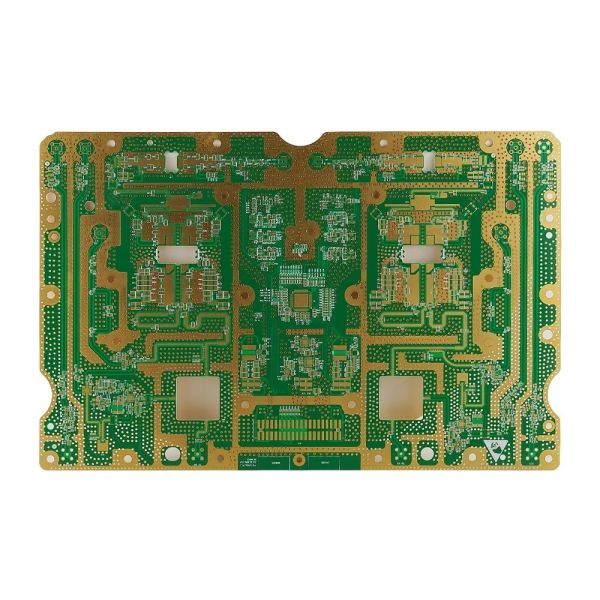

12 Layer Rogers PCB Security Device with HASL Green Soldermask

MOQ : 1

Price : Contact us

Payment Terms : T/T

Layer : 12 Layer

Base Material : Rogers

Thickness : 1.0 mm

Copper Thickness : 2.0 OZ

Board Size : Customized

Min. Line Width/Space : 0.10/0.10mm

Surface Treatment : ENIG/Immersion Gold

Certificate : UL,IATF16949,ISO&Reach

Contact Now

12 Layer Rogers PCB Security Device with HASL Green Soldermask

What's Rogers PCB?

Rogers PCB is a high-performance printed circuit board built with dielectric materials manufactured by Rogers Corporation. Instead of the standard epoxy-glass FR-4, Rogers laminates use ceramic-filled hydrocarbon or PTFE composites that deliver far superior electrical properties at RF/microwave frequencies.

Key Points of Rogers PCB

- Low and tightly controlled dielectric constant (Dk 2.2 – 3.5 typical), so impedance stays stable across frequency
- Very low loss tangent (Df 0.001 – 0.003), minimizing signal attenuation at GHz frequencies
- Excellent thermal conductivity (0.5-0.95 W/m·K) and low CTE, giving good heat spreading and dimensional stability
- Water absorption <0.08 %, so electrical performance is little affected by humidity

12 Layer Rogers PCB Security Device with HASL Green Soldermask

Technical Parameters

Item	Specification
Layers	1~64
Board thickness	0.1mm-10.0mm
Material	FR-4,CEM-1/CEM-3,PI,High Tg,Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP,HASL,Imm Gold/Nickel/Ag, Electric gold
Copper thickness	0.5-15 OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.75mm
Hole tolerance	PTH:±0.05 NPTH:±0.025
Certificate	UL,ISO 9001,ISO14001,IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppliers	Shengyi, KB, Nanya, ITEQ,etc.

Advantages of DQS Team

On-time Delivery:

Owned PCBA factories 15,000 ㎡
13 fully automatic SMT lines
4 DIP assembly lines

Quality Guaranteed:

IATF, ISO, IPC, UL standards
Online SPI, AOI, X-Ray Inspection
The qualified rate of products reach 99.9%

Premium Service:

24H reply your inquiry
Perfect after-sales service system
From prototype to mass production
