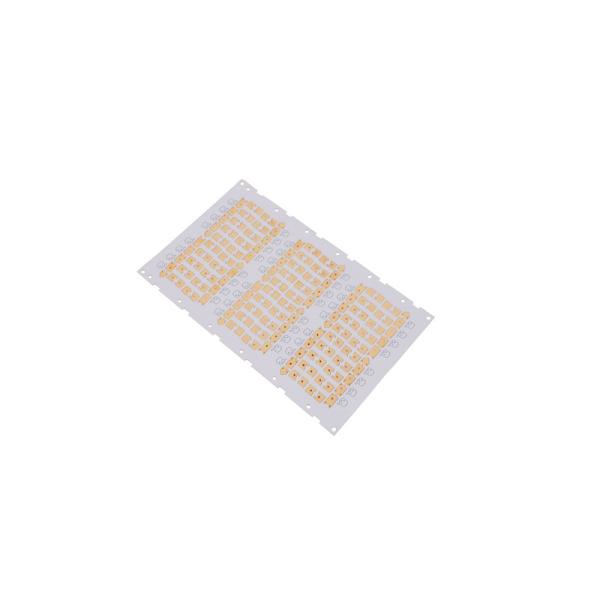

Polyimide & FR4 TG150 2 Layer ENIG Rigid-flex PCB for Consumer Electronic

Place of Origin : China

MOQ : 1

Price : Contact Us

Payment Terms : T/T

Supply Ability : 200,000+ m² PCB per Month

Layer : 2 layers

Material : Polyimide & FR4 TG150

Thickness : 0.5mm

Min. Line Width/Space : 0.1/0.1mm

Surface Treatment : Immersion Gold/ENIG/HASL

Type : Customizable

Application : Consumer Electronic

Standard : UL&IPC Standard &ISO

Contact Now

Polyimide & FR4 TG150 2 Layer ENIG Rigid-flex PCB for Consumer Electronic

♦ What is Rigid-Flex PCB?

A Rigid-Flex PCB is a hybrid circuit board that combines rigid and flexible substrates into a single structure. It consists of multiple layers of rigid PCBs connected by flexible circuits, allowing for 3D bending, folding, and dynamic movement while maintaining electrical connections.

♦ Structure of a Rigid-Flex PCB?

1. Rigid Sections
  - Made of FR-4 or other rigid materials.
  - Houses components (ICs, resistors, connectors).
2. Flexible Sections
  - Made of polyimide (e.g., Kapton) for bendability.
  - Thin copper traces for conductivity.
3. Adhesive/Bonding Layers
  - Holds rigid and flex layers together.
4. Coverlay
  - Protective coating (like solder mask) for flex areas.

Polyimide & FR4 TG150 2 Layer ENIG Rigid-flex PCB for Consumer Electronic

♦ Technical Parameters

Item	Spec
Layers	1~64
Board Thickness	0.1mm-10 mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc
Max Panel Size	800mm×1200mm
Min Hole Size	0.075mm
Min Line Width/Space	Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance	士0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	17um--175um
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	17:01
Solder Mask Type	LPI
SMT Min. Solder Mask Width	0.075mm
Min. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm

Product Tags:

Polyimide rigid-flex PCB for electronics

FR4 TG150 2 layer PCB

ENIG rigid-flex PCB with warranty
